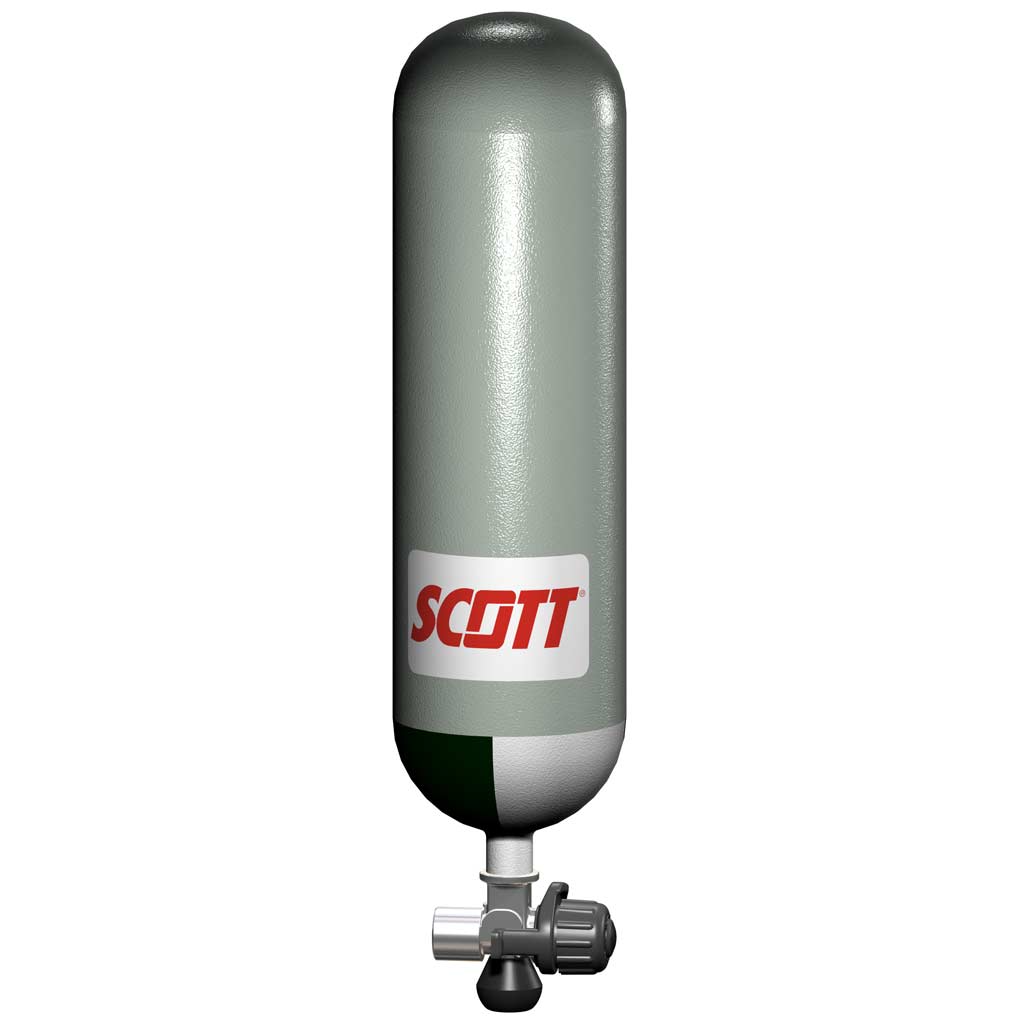

CYL-1200-RA 6ltr 200 bar Steel Cylinder

by: Product Code: N/A

CYL-1200-RA 6ltr 200 bar Steel Cylinder

Product Code:N/A

£271.74 inc. VAT£226.45 exc. VAT

CYL-1200-RA 6ltr 200 bar Steel Cylinder

Clear

Description

CYL-1200-RA 6ltr 200 bar Steel Cylinder (2018923 / 2018922)

Specification
Water Capacity: 6.0 litres
Charging pressure: 200 bars
Test pressure: 300 bar
Volume of air at 200 bar: 1200 litres
Material: Steel
Colour: Painted Grey Body with black and white quartered neck
Specification: CE specification in accordance with the PED
Manufactured in accordance with EN1964-1/ISO9809-1
Dimensions of shell: Approx 140mm diameter x 520mm long
Shell weight: Approx 6.2kg
Fully Charged weight: Approx 8.5kg
Duration based on 40lpm: 30 minute

CYL-1200 is fitted with a 200 bar cylinder valve

Downloads

Cylinder valve CV-5 specification sheet 32 KB
Duration times of cylinders 30 KB
Cylinder pressure change with temperature 31 KB
CYL-1640 32 KB

Additional Information

Supply cylinder Full or Empty

Cylinder Full, Cylinder Empty

Description

CYL-1200-RA 6ltr 200 bar Steel Cylinder (2018923 / 2018922)

Specification
Water Capacity: 6.0 litres
Charging pressure: 200 bars
Test pressure: 300 bar
Volume of air at 200 bar: 1200 litres
Material: Steel
Colour: Painted Grey Body with black and white quartered neck
Specification: CE specification in accordance with the PED
Manufactured in accordance with EN1964-1/ISO9809-1
Dimensions of shell: Approx 140mm diameter x 520mm long
Shell weight: Approx 6.2kg
Fully Charged weight: Approx 8.5kg
Duration based on 40lpm: 30 minute

CYL-1200 is fitted with a 200 bar cylinder valve

Additional Information

Supply cylinder Full or Empty

Cylinder Full, Cylinder Empty
